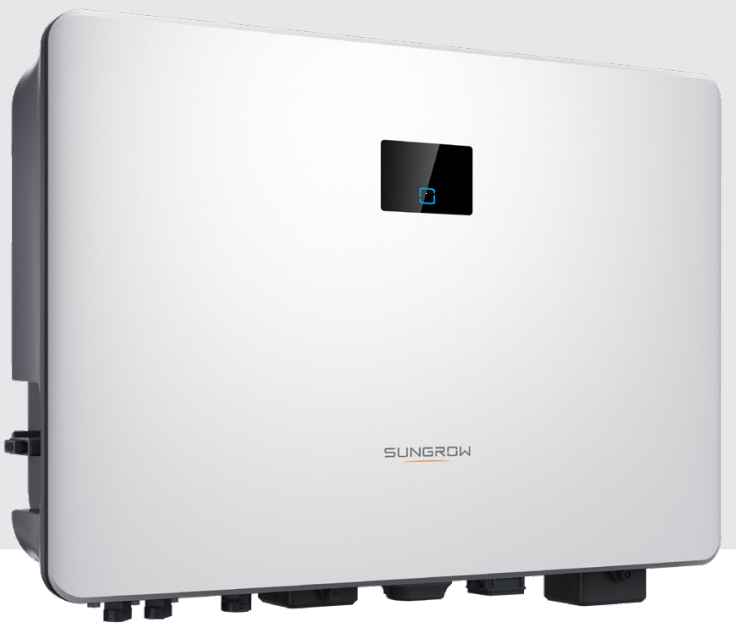

Sungrow SH5K-30 Hybrid Single Phase Inverter for Low Voltage Battery
A Smarter Solution for Energy Independence
The Sungrow SH5K-30 Hybrid Single Phase Inverter delivers outstanding performance, versatility, and reliability. Designed for new installations and retrofitting, it combines energy efficiency with intelligent management, offering seamless integration into residential solar systems. With its built-in safety features and user-friendly setup, this inverter ensures long-term value and peace of mind.
Key Features
- Compatible with High-Power PV Modules: Supports a DC input of 13.5A, making it suitable for modern, high-output solar panels.
- Retrofit-Friendly: Ideal for upgrading existing solar systems with its parallel connection capability and master-slave control.
- 100% Power to Unbalanced Loads: Ensures reliable operation in backup mode for consistent energy delivery.
- Seamless Backup Mode: Automatically switches to backup mode during outages to keep essential systems running.
- Fast Charging and Discharging: Meets high-consumption demands for better utilisation of stored energy.
- EV Integration: Compatible with AC EV chargers, promoting clean energy for electric vehicles.
- Advanced EMS: Built-in energy management system with customisable settings for optimised consumption.
- Free Online Monitoring: Real-time updates via smartphone and web platforms for users, installers, and retailers.
- Plug-and-Play Installation: Unique push-in connectors save time and effort during setup.
- Compact and Lightweight: At just 27 kg, the design ensures quick and easy wall-mounted installation.
- Touch-Free Commissioning: Configure the inverter with a smartphone for a seamless setup experience.
Technical Specifications
| Feature | Sungrow SH5K-30 Details |
|---|---|
| Rated AC Power Output | 5000W |
| Max Efficiency | 97.7% |
| MPPT Voltage Range | 125V-560V |
| Backup Power | 3kW continuous, 6kW peak |
| Battery Compatibility | Lithium-ion, Lead-acid |
| Dimensions (W x H x D) | 457mm x 515mm x 170mm |
| Weight | 22kg |
Why Choose Sungrow SH5K-30?
- Unmatched Efficiency: Delivering peak performance with an advanced MPPT range and energy conversion efficiency.
- Comprehensive Safety: Built with robust protective features for ultimate system reliability.
- Adaptable Design: Ideal for both new setups and retrofit applications, offering compatibility with various battery types.
- Enhanced Monitoring: Stay in control with intuitive app-based tools and online tracking.
Applications
- The Sungrow SH Hybrid Inverter series is ideal for both residential and small commercial applications. Whether you’re retrofitting an existing system or installing a new one, this inverter provides the flexibility, efficiency, and reliability you need.
Installation and Maintenance
Warranty and Support
Power Your Home Smarter—Get the Sungrow SH5K-30 Hybrid Inverter Today!
Take control of your energy future with the Sungrow SH5K-30 Hybrid Single Phase Inverter. Contact us to learn more about how this versatile inverter can revolutionise your solar system and maximise your energy savings.
