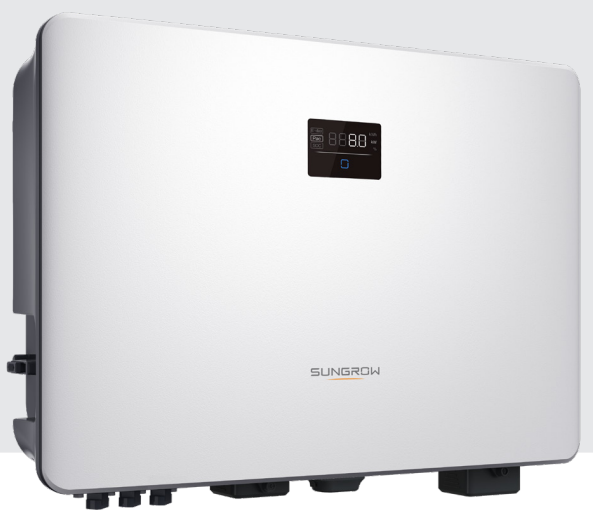

Sungrow SG8.0/9.0/10RS Inverter
The Sungrow SG8.0RS, SG9.0RS, and SG10RS Multi-MPPT String Inverter for 600 Vdc Systems bring unmatched efficiency and reliability to residential solar systems. Compact and lightweight, these triple-phase inverters deliver strong energy output while incorporating advanced safety features and smart monitoring capabilities. Designed for flexibility and ease of installation, they are ideal for homeowners aiming to optimise their solar investment.
Key Features
- High Efficiency:
- Achieves a maximum efficiency of 97.8%, ensuring optimal energy harvest even under challenging conditions.
- European weighted efficiency reaches up to 97.4%, making it one of the most reliable choices for residential applications.
- Wide MPPT Voltage Range:
- Operates with a flexible MPPT voltage range from 40 V to 560 V, allowing compatibility with diverse PV module configurations.
- Smart Management:
- Equipped with real-time monitoring and communication via Ethernet, WLAN, and RS485.
- Includes PID recovery functionality to maintain system performance and protect against potential induced degradation.
- Robust Safety Features:
- Features Type II surge protection on both DC and AC sides, along with built-in DC reverse polarity and AC short-circuit protection.
- Optional arc fault circuit interrupter (AFCI) enhances fire safety.
- User-Friendly Design:
- Compact dimensions (490 x 340 x 170 mm) and a lightweight body (19 kg) make installation effortless.
- Includes LED digital displays and LED indicators for easy system monitoring.
- Durability and Weather Resistance:
- IP65-rated, ensuring reliable performance in outdoor and indoor installations.
- Can operate within a wide temperature range of -25°C to 60°C, making it suitable for various environments.
Technical Specifications
| Specification | SG8.0RS | SG9.0RS | SG10.0RS |
|---|---|---|---|
| Recommended Max. PV Input Power | 12 kWp | 13.5 kWp | 15 kWp |
| MPP Voltage Range | 40 – 560 V | 40 – 560 V | 40 – 560 V |
| Rated AC output power | 8000 W | 9000 W | 10000 W |
| Max. AC output current | 36.4 A | 41 A | 45.5 A |
| Max. Efficiency | 97.8 % | 97.8 % | 97.8 % |
| Dimensions (W x H x D) | 490 * 340 * 170 mm | 490 * 340 * 170 mm | 490 * 340 * 170 mm |
| Weight | 19 kg | 19 kg | 19 kg |
Why Choose the Sungrow SG8.0/9.0/10RS Inverters?
- Energy Optimisation: Maximise energy yield with leading efficiency and advanced MPPT technology.
- Smart Functionality: Monitor system performance in real time and benefit from smart diagnostics.
- Flexible Design: Adapt to various PV configurations with wide voltage ranges and triple MPP inputs.
- Enhanced Safety: Integrated protective features ensure secure operation in any environment.
- Easy Installation: Compact, lightweight design simplifies setup and maintenance.
Application
- The Sungrow SG8.0RS, SG9.0RS, and SG10RS inverters are ideal for residential solar systems requiring reliable energy production and seamless integration with advanced monitoring tools.
Installation & Maintenance
Warranty & Support
Power Your Home with Sungrow SG3K-D/SG5K-D
Experience efficiency, safety, and ease of use with Sungrow inverters. One of our friendly team members will give you a call to discuss the next steps and address any questions you may have.
Frequently Asked Questions
How long does a professional AC22E-01 installation take in Canberra?
Professional installation requires 4-6 hours for complete system commissioning, including electrical connections, network configuration, and comprehensive testing. Most Canberra installations achieve same-day completion when existing three-phase infrastructure meets requirements.
Will the AC22E-01 integrate with my existing Sungrow solar system?
Integration works seamlessly with Sungrow residential inverters manufactured from 2019 onwards through iSolarCloud monitoring. Select Electrical conducts a pre-installation compatibility assessment covering inverter firmware versions and communication protocols.
What warranty protection comes with AC22E-01 installation?
Five-year Sungrow manufacturer warranty plus two-year Select Electrical workmanship guarantee covers installation quality. Canberra-based warranty service eliminates interstate delays for technical support.
Can I use the AC22E-01 during power outages?
Grid connection requirements prevent vehicle charging during power outages. Integration with battery backup systems enables limited charging using stored energy, depending on battery capacity and inverter specifications.
What are the installation costs for AC22E-01 in Canberra?
Installation costs vary based on existing electrical infrastructure, cable run distances, and required upgrades for three-phase capacity. Select Electrical’s comprehensive quote includes a detailed site assessment and a transparent pricing breakdown.
