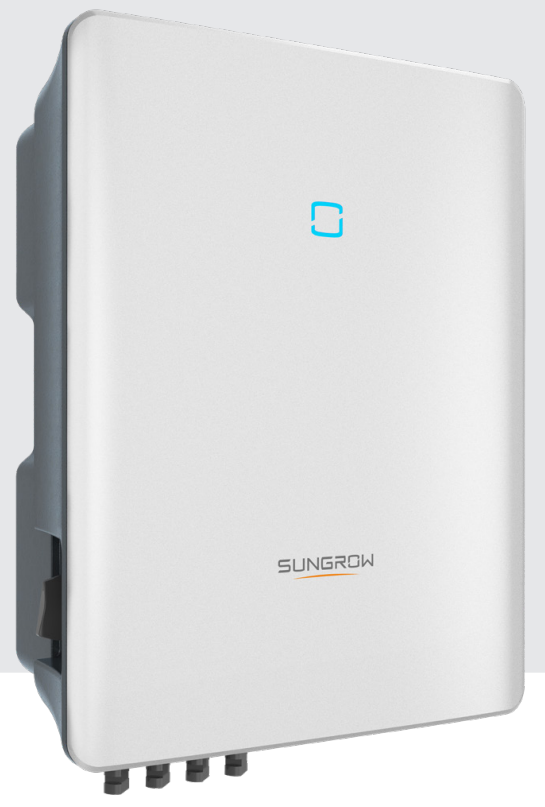

Sungrow RT String Inverters SG5.0RT – SG12RT
The Sungrow SG5.0RT/6.0RT/7.0RT/8.0RT/10RT/12RT series offers solutions for residential and small commercial solar systems. These compact and efficient inverters deliver a high energy yield, enhanced safety, and ease of use. With smart IV curve scanning, 24/7 monitoring and a wide MPPT voltage range, they are an excellent choice for optimising solar energy generation.
Key Features
- High Energy Yield: Achieves optimal energy production with a wider MPPT voltage range and a built-in PID recovery function to ensure maximum module performance.
- Smart Management: Features 24/7 live monitoring, smart IV curve scanning, and over-the-air firmware updates for seamless system management.
- Safety and Durability: Includes a quick arc fault circuit interrupter, Type II DC and AC surge protection, and a C5 anti-corrosion rating for long-lasting reliability.
- User-Friendly Design: Compact 18 kg design with push-in connectors and fast commissioning via a dedicated app simplifies installation and operation.
Technical Specifications
| Feature | SG5.0RT | SG6.0RT | SG7.0RT | SG8.0RT | SG10RT | SG12RT |
|---|---|---|---|---|---|---|
| Max. PV Input Voltage | 7.5 kW | 9.0 kW | 10.5 kW | 12 kW | 15 kW | 18 kW |
| MPPT Voltage Range | 160 V – 1000 V | 160 V – 1000 V | 160 V – 1000 V | 160 V – 1000 V | 160 V – 1000 V | 160 V – 1000 V |
| No. of PV strings per MPPT | 1 / 1 | 1 / 1 | 2/ 1 | 2 / 1 | 2 / 1 | 2 / 1 |
| Nominal AC Power Output | 5,000 W | 6,000 W | 7,000 W | 8,000 W | 10,000 W | 12,000 W |
| Max. Efficiency | 98.4% | 98.4% | 98.4% | 98.5% | 98.5% | 98.5% |
| Dimensions (W x H x D) (mm) | 457 x 476 x 181 | 457 x 476 x 181 | 457 x 476 x 181 | 457 x 476 x 181 | 457 x 476 x 181 | 457 x 476 x 181 |
| Weight | 18 kg | 18 kg | 18 kg | 18 kg | 18 kg | 18 kg |
Why Choose Sungrow SG5.0RT–SG12RT?
- Maximum Energy Harvest: The wide MPPT voltage range ensures optimal performance across various PV system configurations, including bifacial modules.
- Robust Safety Features: With integrated arc fault detection and surge protection, these inverters prioritise safety and reliability.
- Smart Monitoring: Real-time data, IV curve scanning, and remote updates via the Sungrow app enable efficient system management.
- Effortless Installation: Lightweight design and push-in connectors simplify the setup process, reducing installation time.
- Durable Build: Designed with a C5 anti-corrosion rating, these inverters withstand harsh environmental conditions.
Application
- Residential Solar Systems: Ideal for homes with varying roof orientations and energy requirements.
- Small Commercial Projects: Suitable for businesses looking for efficient and scalable solar solutions.
- Advanced Energy Management: Compatible with bifacial modules for higher energy output.
Installation & Maintenance
The Sungrow SG5.0RT–SG12RT inverters offer a seamless experience for installers and users. The 18 kg compact design and innovative push-in connectors streamline installation. Commissioning is made simple with the Sungrow app, allowing quick setup and live system monitoring.
Warranty & Support
Sungrow inverters are backed by a comprehensive warranty and a reliable customer service network, ensuring peace of mind for years to come.
Optimise Your Solar System with Sungrow
The Sungrow SG5.0RT–SG12RT series delivers exceptional efficiency, reliability, and ease of use. Get in touch today to upgrade your solar energy setup and harness its full potential!
