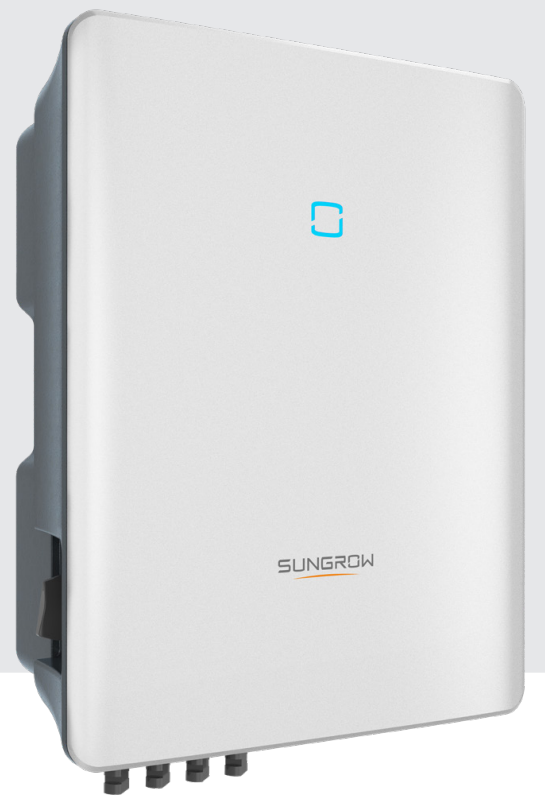

Sungrow SG5.0RT/SG7.0RT/SG10RT/ SG15RT/SG20RT Inverter
The Sungrow SG5.0RT, SG7.0RT, SG10RT, SG15RT, and SG20RT multi-MPPT string inverter, is designed for 1000 Vdc systems. These inverters are engineered to boost commercial solar energy systems, delivering exceptional efficiency, advanced safety features, and user-friendly operation. The bifacial modules can be added to this inverter, which boasts 98.5% efficiency.
Key Features
- High Yield: Achieve superior energy production with a lower startup voltage and a wider Maximum Power Point Tracking (MPPT) voltage range, ensuring maximum energy harvest even under varying conditions. The built-in Potential Induced Degradation (PID) recovery function further enhances energy output.
- Smart Management: Monitor your system effortlessly with 24/7 live monitoring and smart IV curve scanning. Remote firmware updates ensure your system is always up-to-date, providing greater control over energy distribution.
- Safe and Durable: Equipped with a quick arc fault circuit interrupter, built-in Type II DC and AC Surge Protection Devices (SPDs), and a high anti-corrosion rating of C5, these inverters ensure long-term durability and safety.
- User-Friendly Setup: The compact design, weighing as low as 18 kg, facilitates easy handling and installation. Unique push-in connectors and fast commissioning via the Sungrow App streamline the setup process.
- Compatibility: Designed to work seamlessly with bifacial modules, these inverters support various PV configurations, offering flexibility for system designs.
Technical Specifications
| Specification | SG5.0RT | SG7.0RT | SG10RT | SG15RT | SG20RT |
|---|---|---|---|---|---|
| Recommended max. PV input power | 7.5 kW | 10.5 kW | 15 kW | 22.5kW | 30 kW |
| Nominal Input Voltage | 600 V | 600 V | 600 V | 600 V | 600 V |
| MPP Voltage Range | 160 V – 1000 V | 160 V – 1000 V | 160 V – 1000 V | 160 V – 1000 V | 160 V – 1000 V |
| No. of Independent MPP Inputs | 2 | 2 | 2 | 2 | 2 |
| Max. AC Output Power | 5500 VA | 6999 VA | 11000 VA | 16500 VA | 22000 VA |
| Nominal AC Output Power | 5000 W | 6999 W | 10000 W | 15000 W | 20000 W |
| Max. Efficiency | 98.40% | 98.40% | 98.50% | 98.50% | 98.50% |
| Dimensions (W x H x D) | 370 * 480 * 195 mm | 370 * 480 * 195 mm | 370 * 480 * 195 mm | 370 * 480 * 195 mm | 370 * 480 * 195 mm |
| Weight | 18 kg | 18 kg | 18 kg | 21 kg | 21 kg |
Why Choose the Sungrow SG3K-D/SG5K-D?
- Reliable Energy Production: With industry-leading efficiency, these inverters ensure maximum energy conversion from your solar panels.
- Safety First: Advanced protection features, including surge protection and arc fault detection, safeguard your system and home.
- User-Friendly Monitoring: Easy local and online access via app or web for seamless management and real-time updates.
- Compact and Lightweight: Designed for easy handling and quick installation.
- Durable and Weatherproof: IP65-rated to withstand challenging environmental conditions.
Application
- Residential Solar Systems: Ideal for homeowners looking to maximise energy output and simplify monitoring.
- Future-Ready Systems: Supports export power control and flexible PV configurations for evolving needs.
Installation & Maintenance
Warranty & Support
Power Your Home with Sungrow SG3K-D/SG5K-D
Experience efficiency, safety, and ease of use with Sungrow inverters. One of our friendly team members will give you a call to discuss the next steps and address any questions you may have.
Frequently Asked Questions
How long does a professional AC22E-01 installation take in Canberra?
Professional installation requires 4-6 hours for complete system commissioning, including electrical connections, network configuration, and comprehensive testing. Most Canberra installations achieve same-day completion when existing three-phase infrastructure meets requirements.
Will the AC22E-01 integrate with my existing Sungrow solar system?
Integration works seamlessly with Sungrow residential inverters manufactured from 2019 onwards through iSolarCloud monitoring. Select Electrical conducts a pre-installation compatibility assessment covering inverter firmware versions and communication protocols.
What warranty protection comes with AC22E-01 installation?
Five-year Sungrow manufacturer warranty plus two-year Select Electrical workmanship guarantee covers installation quality. Canberra-based warranty service eliminates interstate delays for technical support.
Can I use the AC22E-01 during power outages?
Grid connection requirements prevent vehicle charging during power outages. Integration with battery backup systems enables limited charging using stored energy, depending on battery capacity and inverter specifications.
What are the installation costs for AC22E-01 in Canberra?
Installation costs vary based on existing electrical infrastructure, cable run distances, and required upgrades for three-phase capacity. Select Electrical’s comprehensive quote includes a detailed site assessment and a transparent pricing breakdown.
