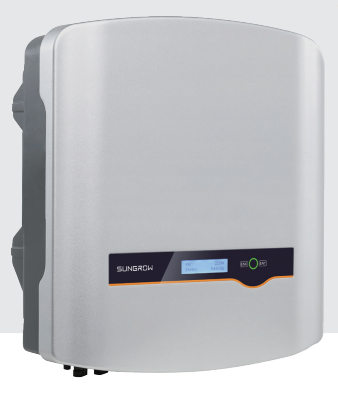

Sungrow SG3K-D/SG5K-D Single Phase Inverter
The Sungrow SG3K-D and SG5K-D inverters combine efficiency, reliability, and user-friendly features, making them ideal for residential solar systems. With a maximum efficiency of 98.4%, integrated safety features, and real-time monitoring capabilities, these lightweight and compact inverters are designed to deliver exceptional performance while ensuring ease of installation and operation.
Key Features
- High Efficiency: Achieves a maximum efficiency of 98.4% and European efficiency of 98.0%, ensuring optimal energy harvest.
- Advanced Safety: Equipped with a quick arc fault circuit interrupter (AFCI), Type II surge protection for DC and AC, and a built-in certified PV isolator.
- User-Friendly Design: Lightweight at 11.5 kg, with plug-and-play installation and fast commissioning via a mobile app.
- Smart Energy Management: Real-time 24/7 monitoring through an app or web interface provides insights into energy usage and performance.
- Durability and Flexibility: IP65-rated for outdoor and indoor installation and compatible with bifacial PV modules.
Technical Specifications
| Feature | SG3K-D | SG5K-D |
|---|---|---|
| Maximum Input Voltage | 600 V | 600 V |
| Nominal AC Power Output | 3,000 VA | 5,000 VA |
| Number of MPPTs | 2 | 2 |
| Max. AC output current | 13.7 A | 21.7 A |
| Maximum Efficiency | 98.4% | 98.4% |
| Dimensions (W x H x D) | 360 x 390 x 133 mm | 360 x 390 x 133 mm |
Why Choose Sungrow SG3K-D and SG5K-D?
- High Energy Yield: With support for bifacial modules and a flexible DC/AC ratio of up to 1.4, these inverters maximise energy production.
- Comprehensive Safety: Features like AFCI and surge protection ensure the system operates securely.
- Real-Time Monitoring: Advanced app-based monitoring and management allow for 24/7 insights and diagnostics.
- Simple Installation: Compact, lightweight design enables a quick and straightforward setup.
- Durability You Can Trust: Built to withstand harsh environments with an IP65 rating.
Application
- Residential Solar Systems: Perfect for homeowners looking to maximise energy efficiency and system performance.
- Smart Energy Management: Ideal for households requiring advanced monitoring and load management.
- Future-Ready Solutions: Compatible with high-efficiency bifacial PV modules for higher energy output.
Installation & Maintenance
The SG3K-D and SG5K-D inverters are designed with the user in mind. Their lightweight, compact build and plug-and-play installation make them accessible for installers. Setup is streamlined with the Sungrow app, providing fast commissioning and system monitoring at your fingertips.
Warranty & Support
Sungrow inverters come with a standard warranty, extendable for added peace of mind. Supported by Sungrow’s robust customer service, these inverters are designed for long-term reliability and performance.
Power Your Home with Sungrow
Choose the Sungrow SG3K-D and SG5K-D inverters for a high-performance, safe, and efficient solar energy solution. Contact us today to optimise your energy system!
Frequently Asked Questions
How long does a professional AC22E-01 installation take in Canberra?
Professional installation requires 4-6 hours for complete system commissioning, including electrical connections, network configuration, and comprehensive testing. Most Canberra installations achieve same-day completion when existing three-phase infrastructure meets requirements.
Will the AC22E-01 integrate with my existing Sungrow solar system?
Integration works seamlessly with Sungrow residential inverters manufactured from 2019 onwards through iSolarCloud monitoring. Select Electrical conducts a pre-installation compatibility assessment covering inverter firmware versions and communication protocols.
What warranty protection comes with AC22E-01 installation?
Five-year Sungrow manufacturer warranty plus two-year Select Electrical workmanship guarantee covers installation quality. Canberra-based warranty service eliminates interstate delays for technical support.
Can I use the AC22E-01 during power outages?
Grid connection requirements prevent vehicle charging during power outages. Integration with battery backup systems enables limited charging using stored energy, depending on battery capacity and inverter specifications.
What are the installation costs for AC22E-01 in Canberra?
Installation costs vary based on existing electrical infrastructure, cable run distances, and required upgrades for three-phase capacity. Select Electrical’s comprehensive quote includes a detailed site assessment and a transparent pricing breakdown.
