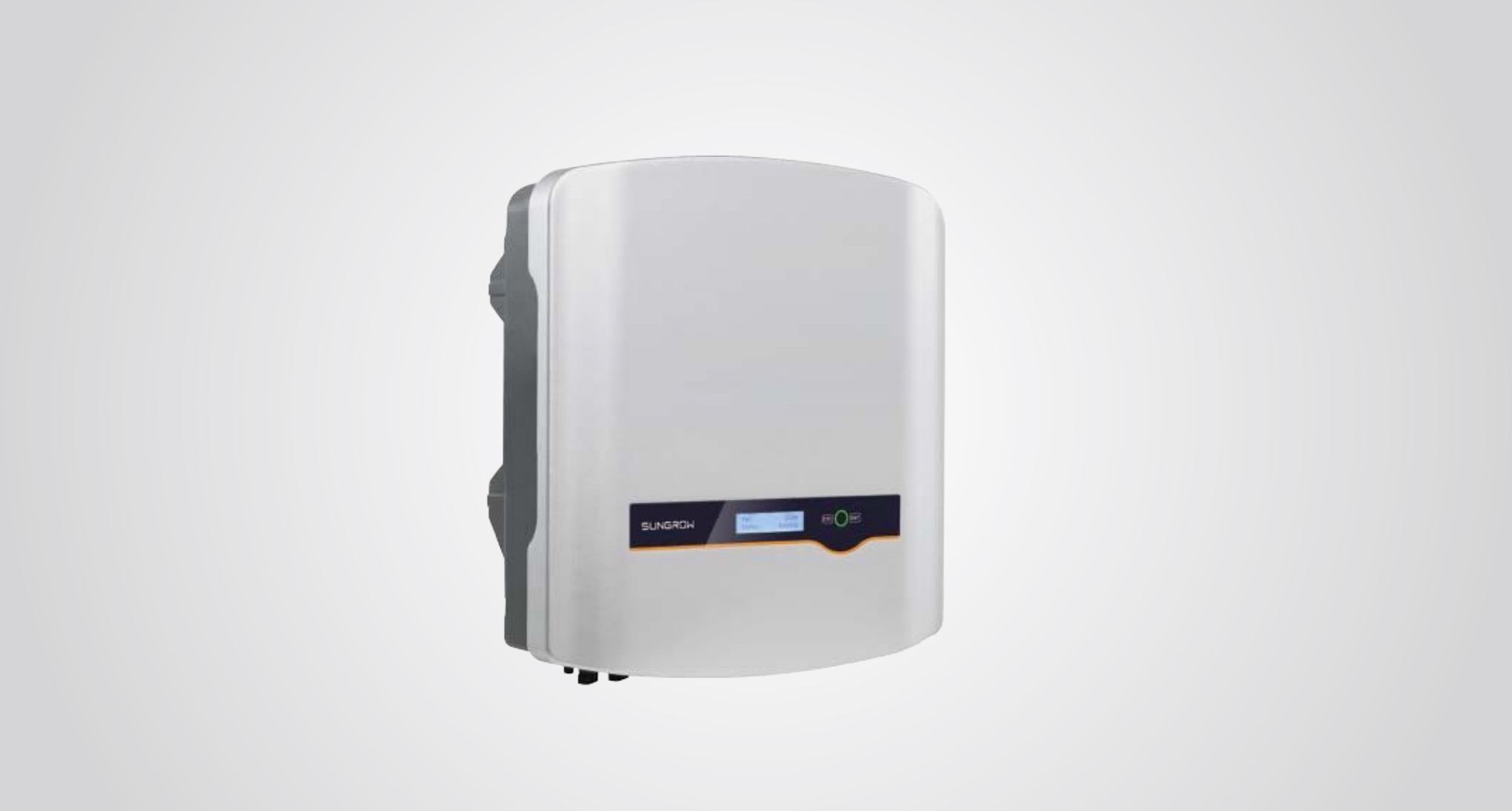

SG3K-D/SG5K-D Premium Residential Single Phase Inverter
HIGH YIELD
- Higher yield with Max. efficiency 98.4%, European efficiency 98.0%
- 12.5 A MPPT current, and compatible with bifacial modules
- Flexible PV string configurations, DC/AC ratio up to 1.4
SAFE AND DURABLE
- Quick Arc Fault Circuit Interrupter
- Built-in Type II DC&AC surge protection device
- Built-in certified PV isolator
SMART MANAGEMENT
- 24H real-time loads monitoring
- Easy local and online monitoring via App or Web
EASY AND USER FRIENDLY
- 11.5 kg compact design, plug and play installation
- Fast commissioning via App

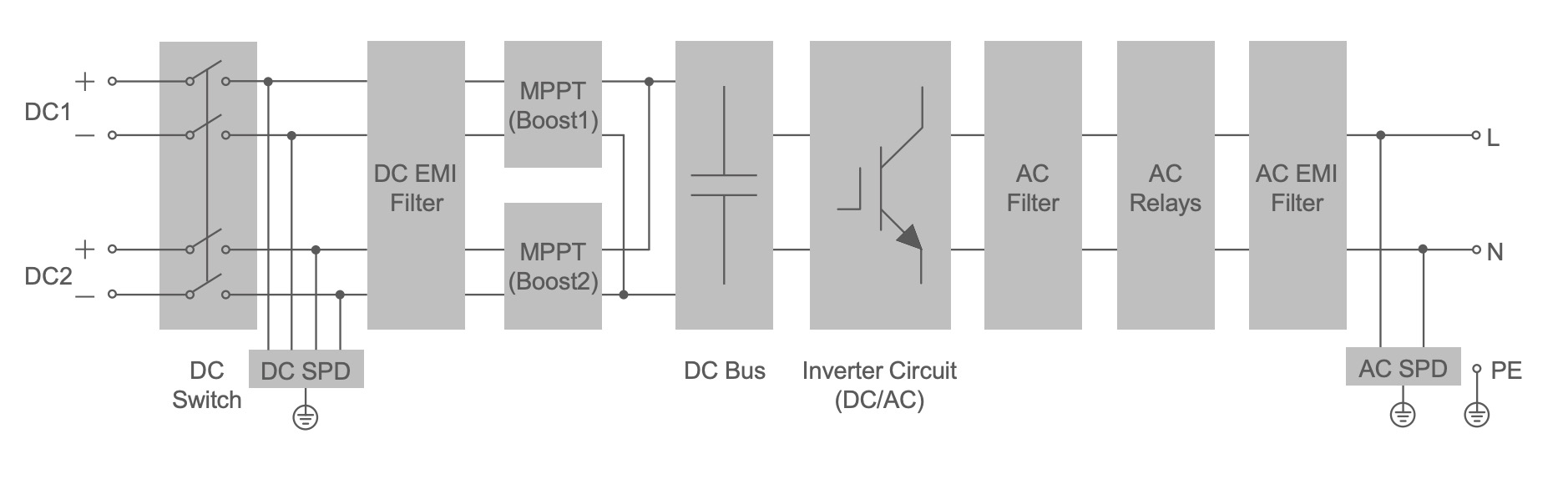

CIRCUIT DIAGRAM

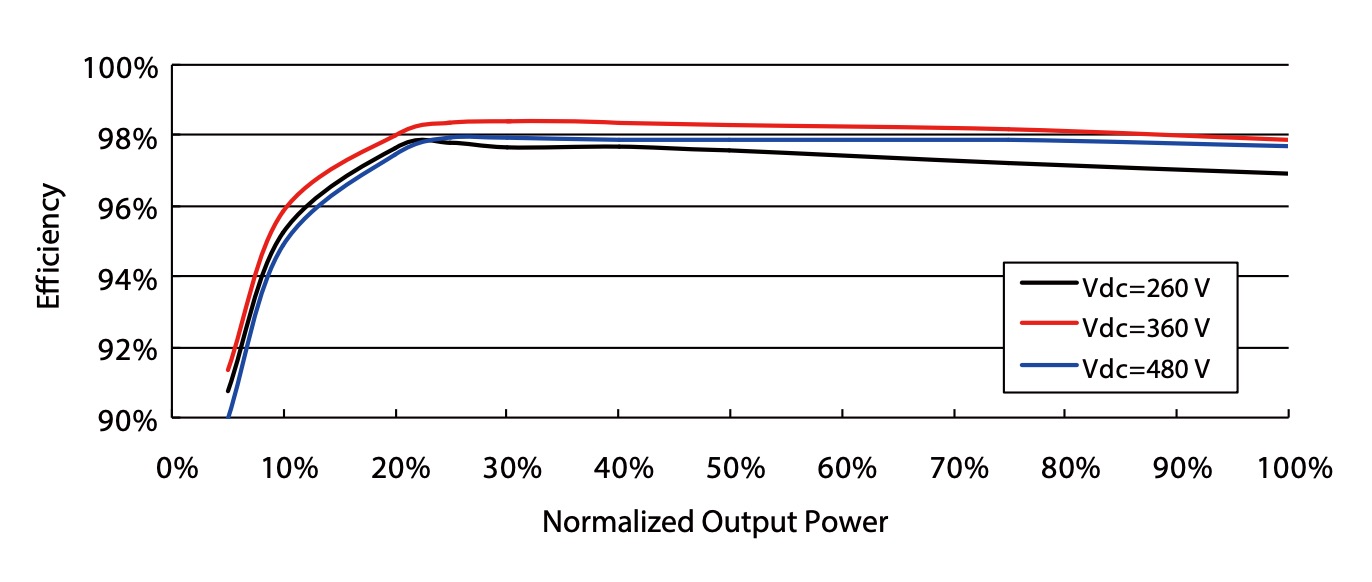

EFFICIENCY CURVE
Technical Specifications
| Type designation | SG3K-D | SG5K-D |
|---|---|---|
| Input (DC) | ||
| Max. PV input voltage | 600 V | |
| Min. PV input voltage / Startup voltage | 90 V / 120 V | |
| Nominal input voltage | 360 V | |
| MPP voltage range | 90 V – 560 V | |
| MPP voltage range for nominal power | 160 V – 480 V | 260 V – 480 V |
| Max. PV Input current | 25 A (12.5 A / 12.5 A) | |
| Output Side Data | ||
| AC output power | 3000 VA | 4999 VA |
| Max. AC output current | 13.7 A | 21.7 A |
| Nominal AC voltage | 230 Vac | |
| Grid frequency range | 45 Hz – 55 Hz / 55 Hz – 65 Hz | |
| Efficiency | ||
| Max. efficiency | 97.7 % | 98.4% |
| European efficiency | 98.0% | |
| General Data | ||
| Dimensions (W*H*D) | 360 * 390 * 133 mm | |
| Weight | 11.5 kg | |
| Ingress protection rating | IP65 | |

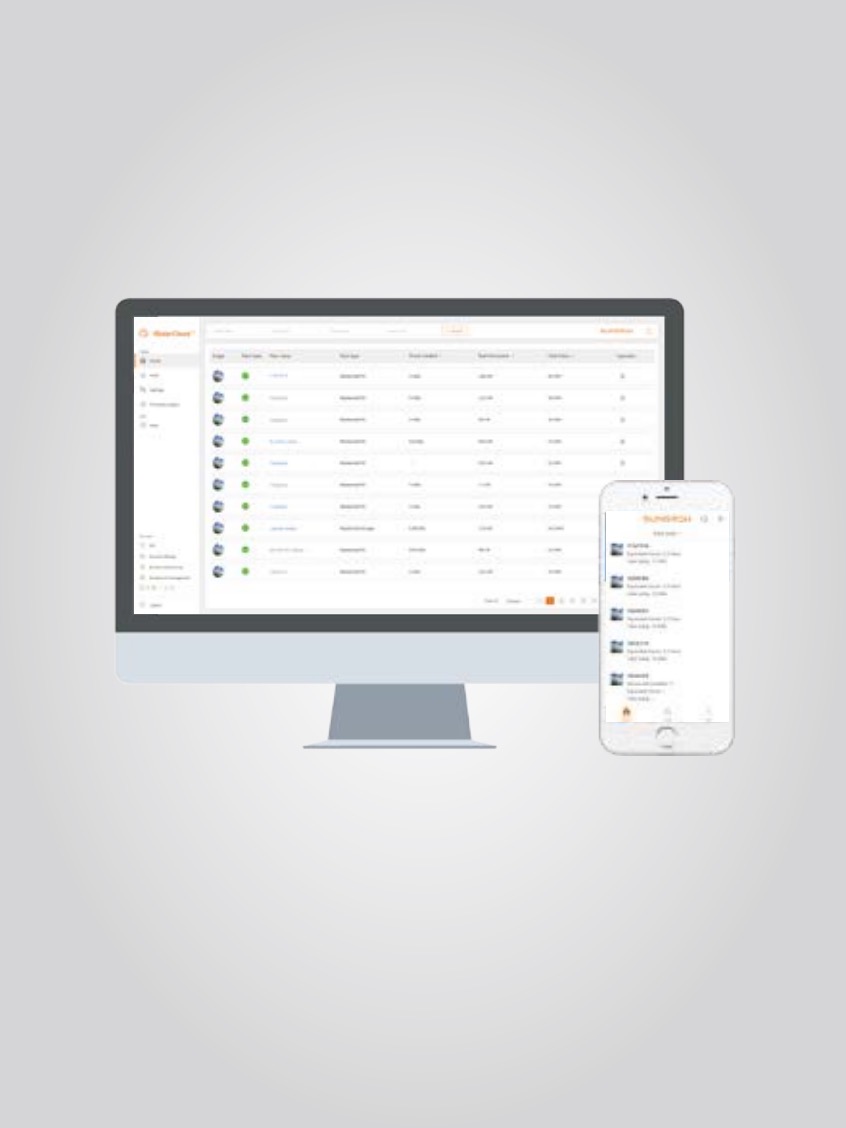

iSolarCloud Online Monitoring Platform
SAFE AND RELIABLE
- Hierarchical access management
- Cyber security and redundant data storage over the lifecycle of plants, certified data security
- Full log for trace and audit
SIMPLE AND EFFICIENT
- Scan QR to create plant or get support, devices automatic access
- Accurate positioning of faults, quick trouble shooting, real-time push of information, reducing time to resolve faults
- Parameter setting, firmware updates, IV curve diagnosis, data analysis and automated reports
FLEXIBLE AND FRIENDLY
- Centralized power plant management, optimized OPEX, Flexible data access, Web portal and App, remote or local maintenance
- Easy account management, share plants with co-workers and friends
| Type designation | iSolarCloud |
| Monitoring Device / Device type | Inverter, combiner box, meteo station, energy meter, transformer and other plant devices |
| Monitoring Capacity | More than 100 GW (scalable) |
| Data Collection Time Interval | 5 minutes |
| General Data / Language | Chinese, English, Japanese, German, French, Spaish, Portuguese, Italian, Dutch, Korean |
| Data storage time | >25 years |
| Storage capability | >100PB |
| System reliability | 99.99% |
| Minimum Web requirements: Browser | IE11, Chrome 56, Safari 11 |
| Minimum Web requirements: Resolution | 1366*768, 1920 1080 recommended |
| Minimum Operating Environment for App: Minimum OS | Android 4.4, IOS 9.3 |
| Minimum Operating Environment for App: Resolution | 1920 1080, 2001 1125, 1280*720 |
Why Go Solar in Canberra?
Canberra is one of the sunniest capital cities in Australia, making it an ideal location for generating renewable energy. With over 2,800 hours of sunshine annually, residents and businesses can tap into substantial solar potential. Investing in solar energy in Canberra means you’re not just saving on power bills, you’re contributing to a cleaner, more sustainable future for the region.
Incentives from the ACT Government, such as interest-free loans through the Sustainable Household Scheme, make the switch to solar even more appealing. Whether you want to reduce energy bills, achieve greater energy independence, or lower your carbon footprint, installing solar panels and batteries in Canberra is smart.
Frequently Asked Questions
Can I use solar batteries with my existing solar panel system?
Yes, solar batteries can be added to an existing solar panel system. However, compatibility and proper integration should be ensured, send us an enquiry for a free consultation.
How long do solar batteries last?
The lifespan of solar batteries typically ranges from 5 to 15 years, depending on the type of battery and usage patterns. Lithium-ion batteries, for example, tend to have a longer lifespan compared to lead-acid batteries.
Can solar batteries save me money on my electricity bills?
Solar batteries can potentially save you money on electricity bills by reducing your reliance on the grid during peak demand periods. This helps avoid purchasing electricity at higher rates.
What size solar battery system do I need for my home?
The size of the solar battery system you need depends on factors such as your energy consumption, the capacity of your solar panels, and your desired level of energy independence. Send us an enquiry and we will help determine the appropriate size for your needs.
Can solar batteries be used in conjunction with a solar panel system for off-grid living?
Yes, solar batteries can be combined with a solar panel system to provide power for off-grid living. This setup allows you to rely solely on solar energy and be independent of the electrical grid.
Do solar batteries require maintenance?
Solar batteries typically require minimal maintenance. However, regular monitoring, occasional cleaning, and firmware updates may be necessary to ensure optimal performance.
Can solar batteries be charged by the grid?
Yes, solar batteries can be charged by the grid during off-peak hours when electricity rates are lower. This allows you to store grid electricity for later use when rates are higher.
How long can a solar battery power my home during an outage?
The duration of backup power provided by a solar battery depends on factors such as the battery’s capacity, the amount of stored energy, and your energy consumption. Larger capacity batteries can provide power for a longer duration.
Can I expand my solar battery storage capacity in the future?
Yes, in many cases, solar battery storage capacity can be expanded by adding additional batteries to the system. It’s important to consider the compatibility and capacity of your existing system when planning for expansion.
Are solar batteries environmentally friendly?
Solar batteries contribute to a greener and more sustainable energy future. By storing and utilising solar energy, they help reduce dependence on traditional power sources.
