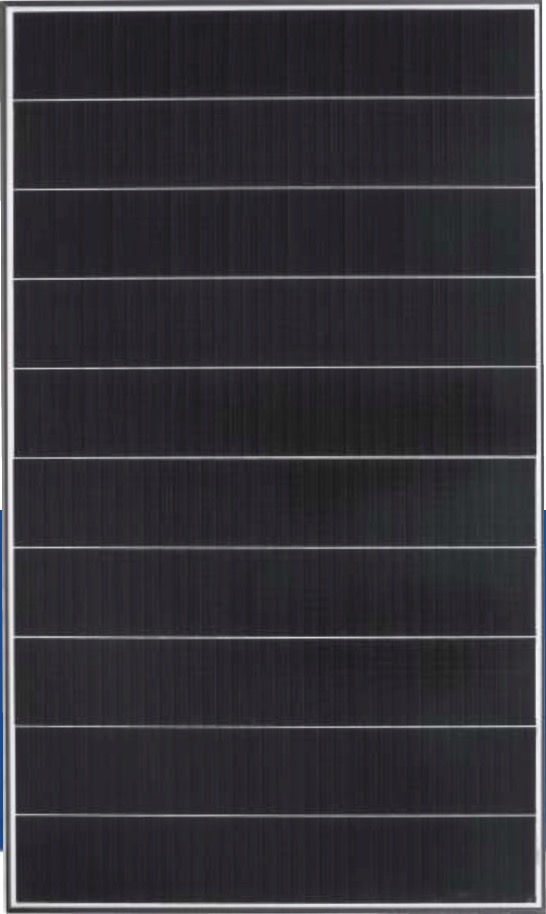

HYUNDAI SOLAR MODULE
UF SERIES
HiE-S390UF | HiE-S400UF
M3+ Shingled Technology For Utility-Scale Applications
M3+ PERC Shingled
M3+ PERC Shingled Technology provides ultra-high efficiency with better performance in low irradiation. Maximizes installation capacity in limited space.
Mechanical Strength
Tempered glass and reinforced frame design withstand rigorous weather conditions such as heavy snow and strong wind.
UL / VDE Test Labs
Hyundai’s R&D center is an accredited test laboratory of both UL and VDE.
Reliable Warranty
Global brand with powerful financial strength provide reliable 25-year warranty. (Australia and Europe Only)
Hyundai’s Warranty Provisions
25-Year Product Warranty
On materials and workmanship (Australia and Europe Only)
25-Year Performance Warranty
Initial year: 98.0%. Linear warranty after second year: with 0.55%p annual degradation, 84.8% is guaranteed up to 25 years.
About Hyundai Energy Solutions Co., Ltd
Established in 1972, Hyundai Heavy Industries Group is one of the most trusted names in the heavy industries sector and is a Fortune 500 company. As a global leader and innovator, Hyundai Heavy Industries is committed to building a future growth engine by developing and investing heavily in the field of renewable energy.
As a core energy business entity of HHI, Hyundai Energy Solutions has strong pride in providing high-quality PV products to more than 3,000 customers worldwide.
Electrical Characteristics
*All data at STC (Standard Test Conditions). Above data may be changed without prior notice.
| Mono-Crystalline Module (HiE-S_UF) | 390 | 400 |
|---|---|---|
| Maximum Rating Power (Pm) [W] | 390 | 400 |
| Open Circuit Voltage (Voc) [V] | 49.3 | 49.5 |
| Short Circuit Current (Isc) [A] | 10.03 | 10.12 |
| Maximum Power Voltage (Vmp) [V] | 40.8 | 41 |
| Maximum Power Current (Imp) [A] | 9.56 | 9.76 |
| Module Efficiency [%] | 20.8 | 21.3 |
| Maximum System Voltage [V] | DC 1,500 | |
| Temperature Coefficient of Pmax [%/°C] | -0.340 | |
| Temperature Coefficient of Voc [%/°C] | -0.270 | |
| Temperature Coefficient of Isc [%/°C] | +0.040 | |
Tolerance of Pmax 0-+5W. Measuring uncertainty of power ±3%. Performance deviation of Voc [V], Isc [A], Vm[V] and Im[A] ±3%.
Mechanical Characteristics
| Dimensions | 1646 x 1140 x 35 mm (L x W x H) |
| Weight | 20.5kg |
| Back Sheet | High weatherability backsheet |
| Encapsulation | EVA |
| Cells | 158.75 x 158.75 PERC solar cells |
| Cable | Length 1500mm, 1 x 4mm² |
| Junction Box | Rated current: 15A, IP67, TUV&UL |
| Frame | Anodized aluminum profile |
| Front Glass | White toughened safety glass, 3.2mm |
| Connector | Staubli Electrical Connectors AG/PV-KST4-EVO 2/xy_UR(male); PV-KBT4-EVO 2xy_UR(female) |
Installation Safety Guide
- Only qualified personnel should install or perform maintenance.
- Be aware of dangerous high DC voltage.
- Do not damage or scratch the rear surface of the module.
- Do not handle or install modules when they are wet.
Operating Conditions
| Nominal Module Operating Temperature (NMOT) | 42°C (±2°C) |
| Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500V DC(IEC) |
| Fire Rating | Class C |
| Series Fuse Rating | 20A |
| Maximum Surface Load Capacity | 5400Pa |

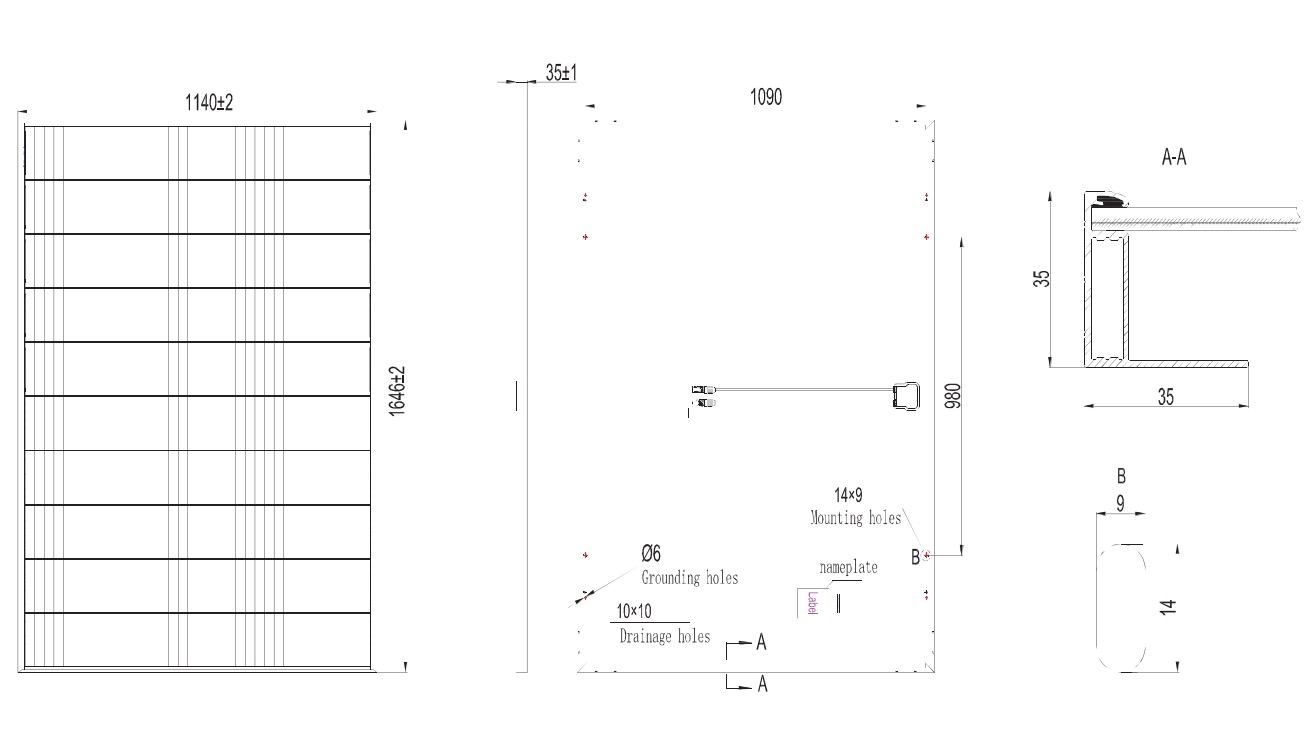

Module Diagram

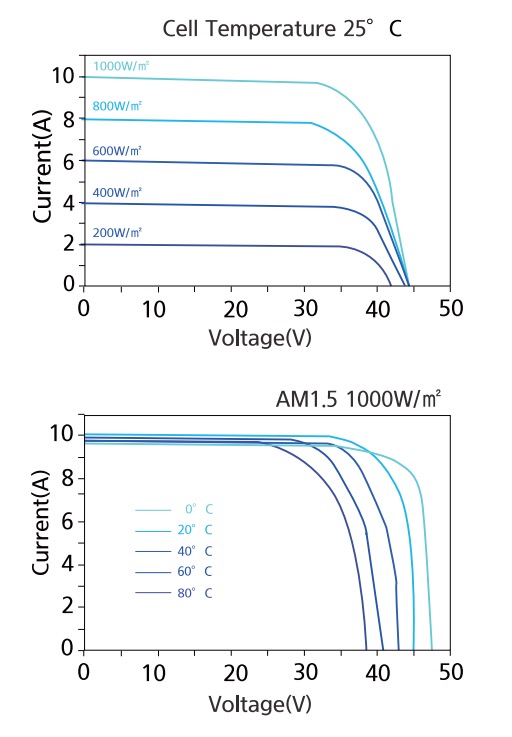

I-V Curves
Certifications: UL, VDE, CE, PV CYCLE, Tier 1
